Good to know
. One bent anchor plate is required per leg.
. Mounting bolts are not included.
. Width between table legs: 26.3 in (67 cm).
. Width between picnic table legs: 49.5 in (125.7 cm).

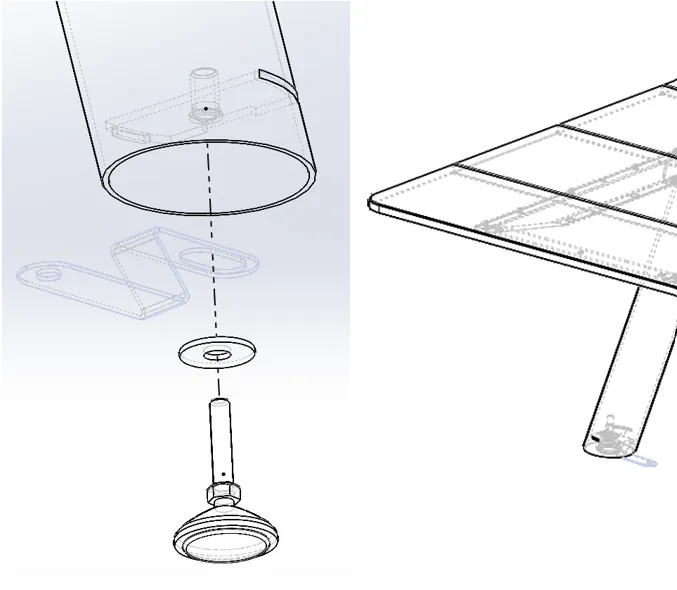

- Attach the bent anchor plate to each table leg.
2. Do this before mounting the legs to the table frame.
3. Do not fully tighten the anchor plate yet. It should still be able to move slightly for adjustment.
4. Fully assemble the table.
5. Position the legs above the pre-drilled holes in the ground.
6. Align the anchor plate correctly.
7. Make sure the hole in the anchor plate is directly aligned with the pre-drilled hole.
8. Confirm that all components are correctly positioned before fully tightening the fixings.
